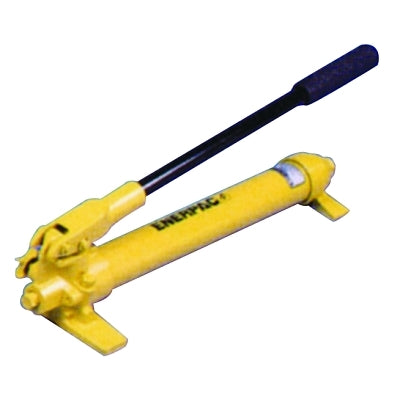

Steel Hand Pump, Single-Speed, 41 cu in Useable Oil

Features

• Large oil capacity to power a wide variety of cylinders or tools
• 4-way valving on the P-84 and P-464 for operation of double-acting cylinders
• Internal pressure relief valve for overload protection
• Easily convert to foot power with the PC-10 kit

Specifications

• Height [Nom]: 4.69 in
• Length [Nom]: 20.47 in
• Maximum Handle Effort: 111 lb
• No. of Speeds: 1
• Oil Displacement Per Stroke (2nd Stage): 0.16 cu in
• Operating Pressure @ Volume/1Stroke: 10000 psi @ 0.16 cu in
• Operating Pressure [Max]: 10000 psi
• Type: Single-Speed
• Useable Oil Cap. [Max]: 41 cu in
• Width [Nom]: 5-1/4 in
