Home » Straight Flute Bottom Chamfer Hand Tap, #12-24 UNC Tool Size, 2.375 in OAL, 4 Flutes
Cle-Line

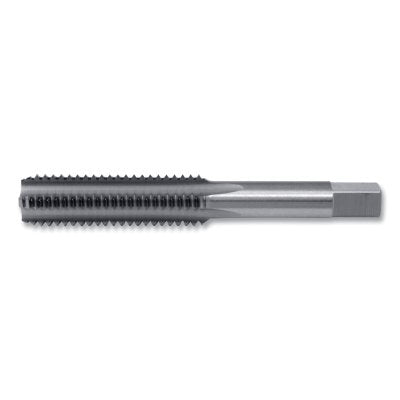

Straight Flute Bottom Chamfer Hand Tap, #12-24 UNC Tool Size, 2.375 in OAL, 4 Flutes

SKU: A00164675 Barcode: 6973346202730
In stock

Payment details

  • American Express
  • Discover
  • Mastercard
  • Visa
  • Brand Cle-Line
  • SKU A00164675
  • Barcode 6973346202730
  • Unit of Measurement Each
  • Package Quantity 1 EA = 1 EA
  • Country of Origin US
  • Manufacture Part # C62027

Features

  • Manufactured from premium high-speed steel (HSS)
  • The bright finish on these taps provides a smooth, polished surface

Specifications

  • Applicable Materials:
    • K: Cast Iron
    • N: Non-ferrous (Aluminum)
    • P: Steel
  • Cutting Direction: Right
  • Drill Bit Diam: 0.216 in
  • Length [Nom]: 2.375 in
  • Material: High Speed Steel
  • Measuring System: Imperial
  • No. of Flutes: 4
  • Packing Type: Snap Pack
  • Shank Size Symbol: Square
  • Style: 0403
  • Tap Size: #12-24 UNC
  • Tap Type: Straight Flute Hand Tap
  • Thread Pitch [Nom]: 24
  • Thread Size [Nom]: #12
  • Type: Bottoming Chamfer Hand Tap
