Home » Straight Flute Taper Chamfer Hand Tap, 7/16-20 UNF Tool Size, 3.1562 in OAL, 4 Flutes
Cle-Line

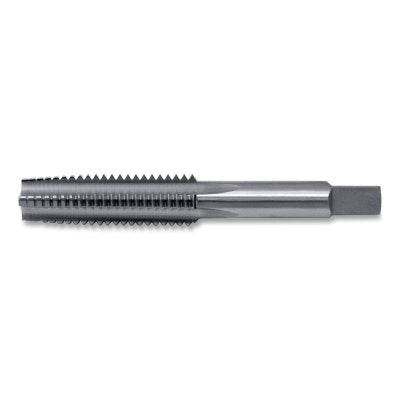

Straight Flute Taper Chamfer Hand Tap, 7/16-20 UNF Tool Size, 3.1562 in OAL, 4 Flutes

SKU: A00165057 Barcode: 6973346205700
In stock

Payment details

  • American Express
  • Discover
  • Mastercard
  • Visa
  • Brand Cle-Line
  • SKU A00165057
  • Barcode 6973346205700
  • Unit of Measurement Each
  • Package Quantity 1 EA = 1 EA
  • Country of Origin US
  • Manufacture Part # C62057

Features

  • Manufactured from premium high-speed steel, HSS
  • The bright finish on these taps provides a smooth, polished surface

Specifications

  • Applicable Materials:
    • K: Cast Iron
    • N: Non-ferrous (Aluminum)
    • P: Steel
  • Cutting Direction: Right
  • Length [Nom]: 3.1562 in
  • Material: High Speed Steel
  • Measuring System: Imperial
  • No. of Flutes: 4
  • Outside Diam [Nom]: 7/16 in
  • Packing Type: Snap Pack
  • Shank Size Symbol: Square
  • Style: 0401
  • Tap Size: 7/16-20 UNF
  • Tap Type: Straight Flute Hand Tap
  • Thread Pitch [Nom]: 20
  • Thread Size [Nom]: 7/16 in
  • Type: Taper Chamfer Hand Tap
