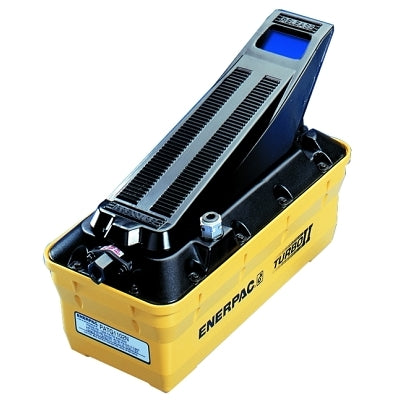

Turbo II Air/Hydraulic Pump, Single-Acting Cylinder,127cu in Useable Oil Cap Max

Features

• High efficiency fully serviceable cast aluminum air motor for increased life and reduced air consumption
• Operating air pressure 25 - 125 psi enables pump to start at low pressure
• Return-to-tank port for use in remote valve applications
• Internal pressure relief valve provides overload protection

Specifications

• Air Consumption [Max]: 1200 SCFM
• Air Pressure Range [Max]: 125 psi
• Air Pressure Range [Min]: 25 psi
• Flow [Max]: 600 cu in/min
• Flow [Min]: 100 cu in/min
• Operating Pressure [Max]: 10
• Sound Level: 76 dB
• Useable Oil Cap. [Max]: 127 cu in
• Used With: Single-Acting Cylinder
• Wt.: 18 lb
