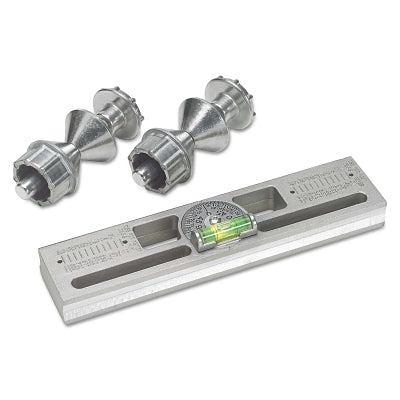

Universal Level, 9-3/4 in L, 1 Vial, Aluminum

Features

• Multi-purpose tool for ensuring accurate leveling, setting predetermined pitch of a string of pipe, setting angle of laterals to precise degree, truing vertical runs, and two-holing flanges
• Two cast-in 25 lb. pull magnets hold unit in place on any steel surface, including the underside of a pipe or beam
• Features 360º adjustable dial bubble protractor
• Cast-in table indicates rise-per-foot in inches and meters
• Cast-in groove makes level self-centering on contour of the pipe

Specifications

• Accuracy: 2.5 degrees
• Body Material: Aluminum
• Height [Nom]: 2 in
• Includes:
  • (2) Threaded, Self-Aligning Conical Spacers
  • (2) Conical Nuts
  • (2) Bolt Units
• Length [Nom]: 9-3/4 in
• No. of Vials: 1
• Size 1: Hole Spaced 2 1/4 - 8 in Centers
• Width [Nom]: 4.75 in
• Wt.: 2.23 lb
