Home » VN Series HVAC Nitrogen-Purging Regulator/Flowmeter, 35 to 25 SCFH Purge/3 to 6 SCFH Braze, 5-1/2 in L, CGA-580
Western Enterprises

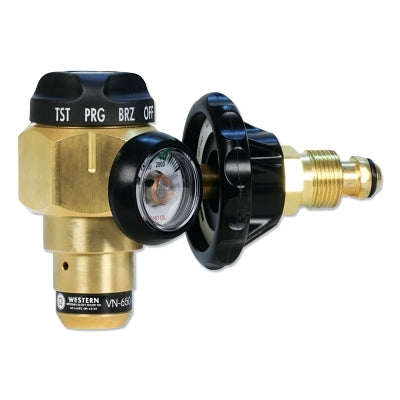

VN Series HVAC Nitrogen-Purging Regulator/Flowmeter, 35 to 25 SCFH Purge/3 to 6 SCFH Braze, 5-1/2 in L, CGA-580

SKU: A00155958 Barcode: 698944126124
In stock

Payment details

  • American Express
  • Discover
  • Mastercard
  • Visa
  • Brand Western Enterprises
  • SKU A00155958
  • Barcode 698944126124
  • Unit of Measurement Each
  • Package Quantity 1 EA = 1 EA
  • Country of Origin US
  • Manufacture Part # VN650

Features

  • Hybrid designregulator and flowmeter all in one
  • Easy-to-read nitrogen cylinder content gauge with preset flow rates
  • Heavy-duty brass body designed for rugged field use
  • No adaptors needed

Specifications

  • Connection Type: CGA-580
  • Flow Cap. [Max]:
    • 35 SCFH Purge
    • 6 SCFH Braze
  • Flow Cap. [Min]:
    • 25 SCFH Purge
    • 3 SCFH Braze
  • Gas Type: Nitrogen
  • Height [Nom]: 3-1/2 in
  • Length [Nom]: 5-1/2 in
  • Operating Pressure [Max]:
    • 650 psi Test
    • 3000 psi
  • Outlet Size: 1/4 in
  • Outlet Type: Male SAE Flare
  • Quantity: 1 EA / EA
  • Series: VN Series
  • Style: Preset to Purge/Braze/Test Click Style
  • Width [Nom]: 3.6 in
